Introduction：

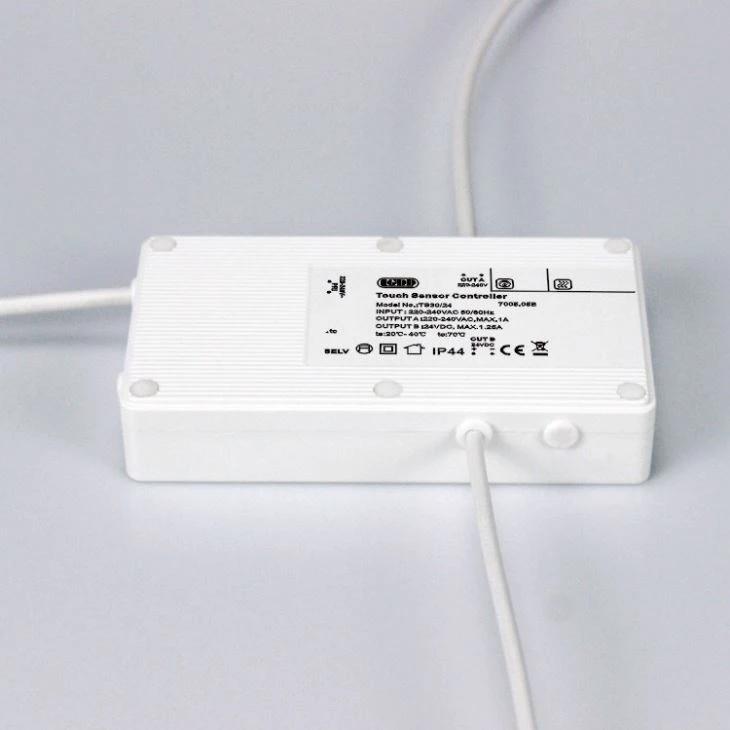

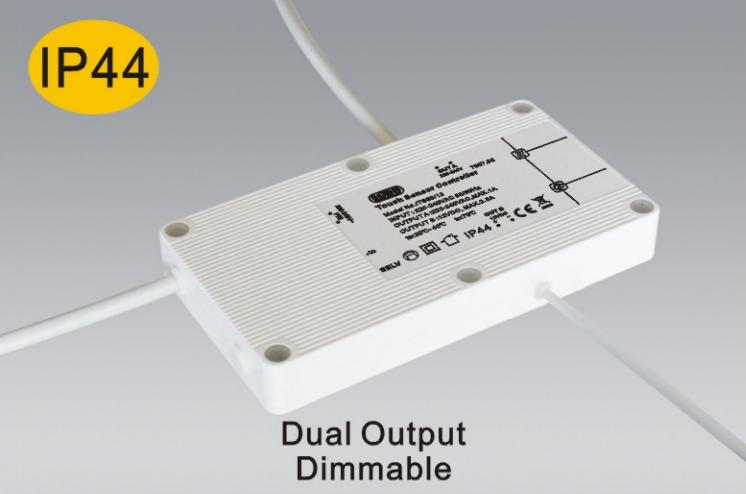

The Touch Sensor Switch for Mirror, is highly integrated with LED driver, sensor switch and relay. It allows people briefly touching the sensor area of the mirror, dimming the light freely. In the meanwhile, it also allows the mirror workable with anti-fog film, to bring a good user experience. Create your own custom lighting fixtures with simple dimming control with just a touch of the hand.
Performance Parameters：
| Model | Input Voltage | A Output Voltage | A Output Current | B Rated Voltage | B Output Power | Dimension(mm) |
7007.05B | 220-240VAC | 220-240VAC | Max. 1.0A | 12V/24VDC | 15W | 155*85*20 |
220-240VAC | 220-240VAC | Max. 1.0A | 12V/24VDC | 20W | ||
220-240VAC | 220-240VAC | Max. 1.0A | 12V/24VDC | 30W | ||
7006.05B | 220-240VAC | 220-240VAC | Max. 1.0A | 12V/24VDC | 60W | 155*85*30 |
Function Description:
1. Two-button touch sensor controller, with built-in constant voltage driver
2.Touch on/off & anti-fog film
3. Dimmable from 5% to 100%
4.Hidden installation behind mirror surface
5. Memory function
6. Passed CE, IP44 and 10,000 switch life tests
7. IP44
Application:
1.Control anti-fog film on/off
2.Short touch (＜0.5s): light on/off
Long touch (＞0.5s): dimming from 5%~100%
Size & Installation:
Hidden installation behind mirror surface, work for anti-fog film and light dimming.
Connection:
FAQ:
Q1：Are you a truly factory?
A:Yes we are a factory has almost 35-year experience on producing. Welcome to visit us any time you want.
Q2: I wonder if you accept small orders?
A:Don't worry,Feel free to contact us! In order to get more orders and give our clients more convenience,we accept small order.
Q3： Is your factory able to design our own package and help us in market planning?
A:Yes for this, and we have our package factory supplier cooperation,it is very to help you for that.And we will confirm all you need the packing detail.
Q4：Are the products safe enough?
A：Our products have been tested thoroughly and are certificated by numerous internationally recognized regulatory bodies and safety organizations, including European TUV, SGS, CE and RoHS.
Q5： Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
We will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.
