Description

12V touch sensor (3)

From the traditional pull switch to the rocker switch, it has entered the era of smart touch.

12V volt touch sensitive switch 1

Introduction：
The 12 Volt touch sensitive switch is an isolated touch sensor switch. It is suitable for all kinds of lamps with medium (such as glass, acrylic, plastic, ceramic, etc.). In the case of isolation and protection, it can be triggered without touching metal parts through glass. The switch works to realize the touch function and high safety performance. The switch uses no mechanical wear and has a long life. After the switch is installed, the switch accessories can not be seen on the front of the mirror, but the touch keys exposed through the backlight are simple and stylish.

The 12 Volt touch sensitive switch board is designed with a backlight. The backlight and the touch switch are designed as a whole. When the power supply and the switch are connected, the backlight on the switch board lights up after the power is turned on, and the backlight is always on.

Key Feature:
1.12 Volt touch sensitive switch
2.Can be triggered without touching metal parts
3.The switch uses no mechanical wear and has a long life

Touch switch function:
When the human body touches the switch,the light on;touch again，the light off.

M429-1

Performance Parameters：
Model: 5103.00
Input /Output Voltage: 12V/24V DC
Output Current: 3.0A
Rated power: 36W(12V)/72W(24V)
Standby power: ≤0.15W
Dimension：57*64*11mm

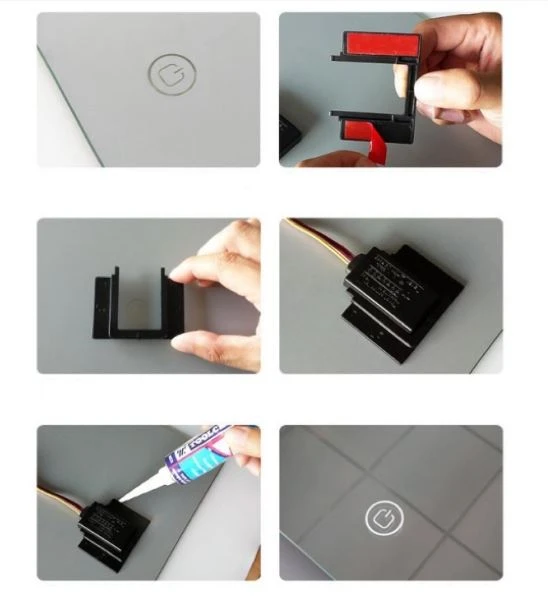

Installation steps:
1.The mercury face of the mirror is marked with a laser
2.Remove the 3M sticker from the bracket for easy installation
3.Glue the center of the cross mark on the bracket to the key icon.
4. Slowly push the switch into the bracket.
5. Use glass glue to reinforce the outside of the bracket.
6. Install well, after electrifying already see backlight type icon

Shipping Information:

FOB Port: Ningbo or Shanghai Port
Lead Time: 5-30 Days Based On Finally Order Quantities

More Options：

Model No.	Main Function	Function Description
5103.00 Single Switch	ON/OFF	Short touch to turn on/off mirror light. When mirror light off, sensor shows blue backlight; when mirror light on, sensor shows white backlight. When mirror light off, long press to turn off sensor backlight completely. ***Sensor backlight color can be customized as per your requirements.
5103.00T Single Switch with Single Color Temperature	ON/OFF+Dimming	Short touch to turn on/off mirror light. Long touch to dimmable mirror light brightness form 5%-100%. When mirror light off, sensor shows blue backlight; when mirror light on, sensor shows white backlight. When mirror light off, long press to turn off sensor backlight completely. ***Sensor backlight color can be customized as per your requirements.
5103.00D Single Touch with Multi Color Temperature	1. ON/OFF+3 color temperature change 2. CW-NW-WW，step adjustable	Short touch：CW-NW-WW，mirror light 3 color temperature step adjustable. Long touch：mirror light brightness dimmable from 5%-100%，within 3 seconds. With memory function. Color temperature and brightness changes have soft on/off effects, within 0.6 seconds. When mirror light off, sensor shows blue backlight; when mirror light on, sensor shows white backlight. When mirror light off, long press to turn off sensor backlight completely. ***Sensor backlight color can be customized as per your requirements.

Working Video see the link below:

https://youtu.be/d2UQ08ie4fQ

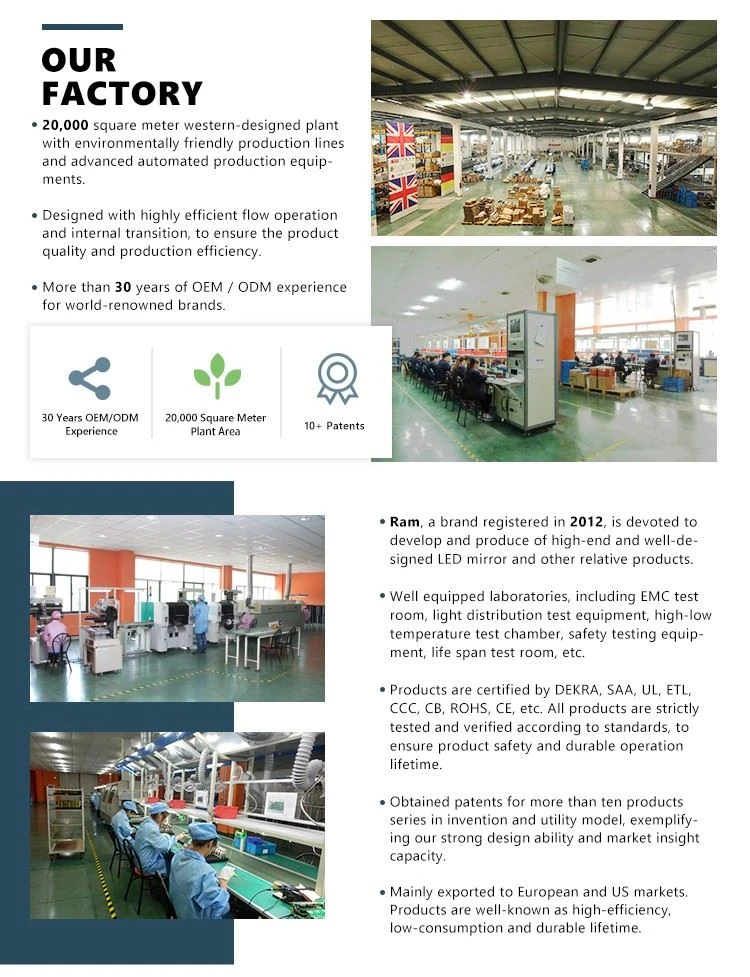

Why Chose RAM?

RAM was established in 1984, manufacturer with more than 30years experience.

Strong technology power to support OEM , especially in ODM.

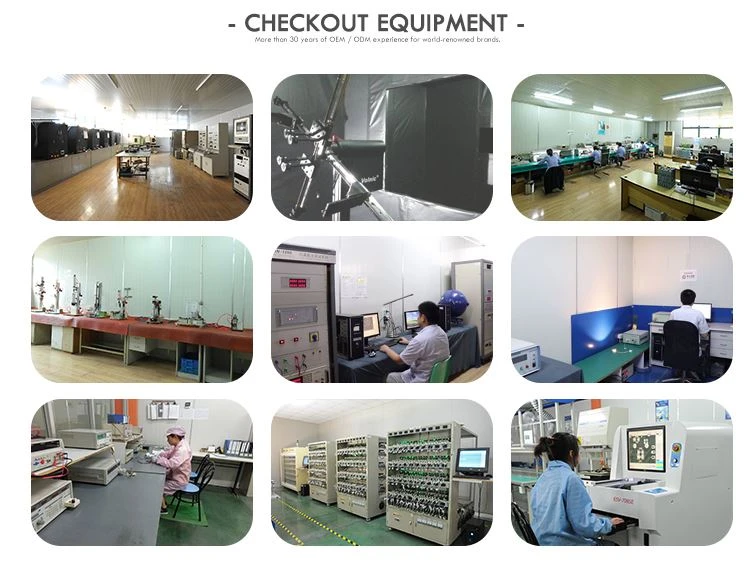

100% quality control before shipment.
