Introduction：
The IR Sensor ON OFF Switch is highly integrated with LED driver, IR sensor switch and relay. This IR sensor integrated box helps to simplify the installation; reduce assembly steps and lower final selling price. It can be thought of as a light switch that only requires the wave of your hand to operate your lights. Once installed, a simple wave of your hand within 5 cm of the sensor head will tell the sensor to open or close the power circuit turning your lights on or off. If you wave your hand in front of the sensor while the lights are off, it will toggle them on and will keep them on until you wave your hand in front of the sensor again to toggle them off.
Function Description:
1. High & low voltage dual output
2. Can be installed in cabinets or mirrors
3. Built-in constant voltage driver & Relay
4. Detection range: less than 5cm is recommended
5. Workable with anti-fog film
6. Memory Function
7. IP44
Performance Parameters：
| Model | Input Voltage | A Output Voltage | A Output Current | B Rated Voltage | B Output Power | Dimension(mm) |
7007IR.01 | 220-240VAC | 220-240VAC | Max.0.94A | 12V/24VDC | 15W | 155*85*20 |
220-240VAC | 220-240VAC | Max. 0.91A | 12V/24VDC | 20W | ||
220-240VAC | 220-240VAC | Max. 0.88A | 12V/24VDC | 30W | ||
7006IR.01 | 220-240VAC | 220-240VAC | Max. 0.75A | 12V/24VDC | 60W | 155*85*30 |
Sensor Options:
Model | Dimensions | Cut-Out Size | Board Thickness | Attentions |
05100.01 |
| Ø 18mm | ＜5mm | Workable behind nonmetallic transparent material (Glass, Plexiglass, etc). The thickness of the material should be less than 6mm |
05100.02 |
| Ø 13mm | ＞1mm |

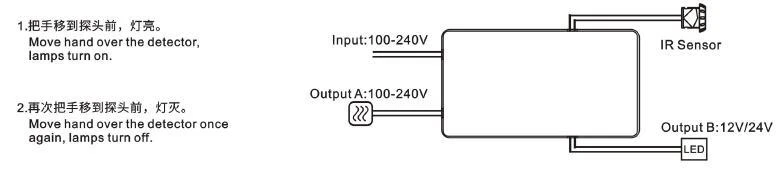

Application:
1. Move hands over the detector, lamps turn on.
2. Move hands over the detector once again; lamps turn off.
Size & Installation:
Size: 155*885*20/30mm, can be installed in cabinets or mirrors.
Connection:
