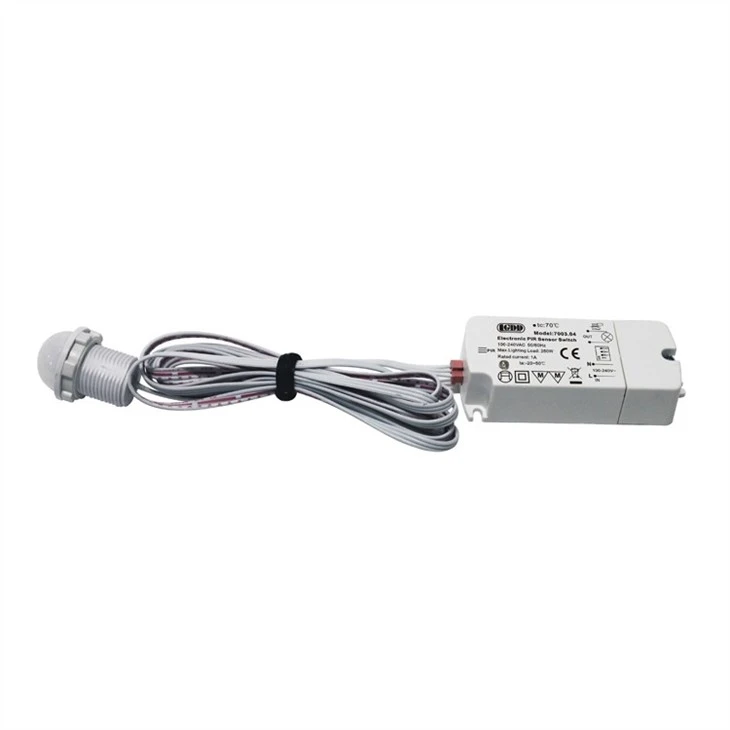

Human Body Infrared Sensor

Introduction：

Human body infrared sensor switch is also called heat release human body induction switch or infrared intelligent switch. It is based on infrared technology dynamic control products, when the person into the induction range, the special sensor detects the changes in the infrared spectrum of the human body, automatically connected loading (eg lamps). Realize that the lamp automatically lights up when the person walks to the detection range.

Use this human body infrared sensor switch can use indoors and outdoors. entrance light can be placed in the walkway, porch, corridor, patio, garden, balcony, or garage. Lighting fixture lights up the darkness and also a perfect decoration with a classic appearance, making it a great choice! This 220V PIR Motion Sensor with a lower defect rate, higher cost, and better quality. human body infrared sensor good design ensures quality and safe operation. Not only does it reduce your energy waste, but it also save your money.

Key Feature:

1. High voltage human body infrared sensor switch
2. Detection Range: Maximum 3M
3. Detection-Angle: 80°
4. Select delay time by push button: 10S-120S
5. Energy saving
6.Accurate induction, less false action

Sensor Options:

Model	Dimensions	Cut - Out Size	Board Thickness
05101.00		Ø 19mm	＜17mm

Performance Parameters:

Application:

1. When the sensor detects ambient light illumination＞160lux, the sensor controller will shut off the auto-detect mode

2. When the sensor detects ambient light illumination＜80lux, the sensor controller will start the auto detect mode.

 3. Delay time selection

Advantages &Disadvantages:

human body infrared sensor switch advantages: accurate induction, less false action, only people or close to the human body temperature into the light.

Disadvantages: greatly affected by temperature, due to the PIR induction of the signal of human body temperature and the ambient temperature of the variable, so when the ambient temperature rises, the sensitivity will decrease. The closer the ambient temperature is to the human body temperature, the lower the sensitivity will be the working temperature of the body infrared sensor lamp is suitable for the environment below 32°C.

Size & Installation:

Dimension: 83*35.5*18.5mm, human body infrared sensor switch are often used in stairs, walkways, toilets, elevators and many other general public places. The PIR Switch is the best solution for energy saving.

Connection:
