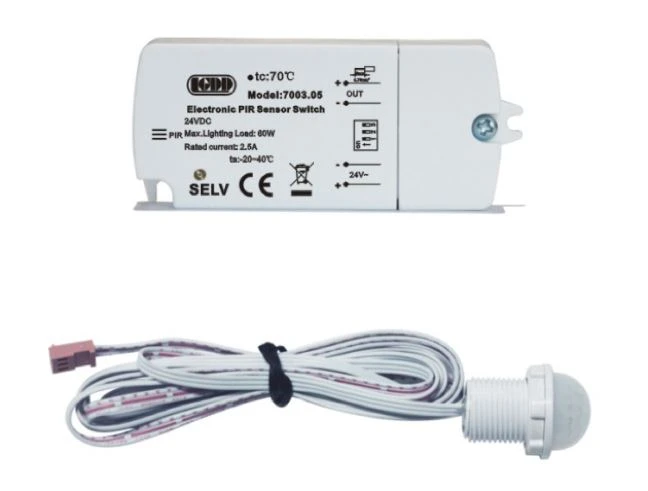

Introduction：
The PIR Light switch uses infrared technology, built-in human body infrared sensor module, light effect sensor module, and delay switch module. Integrated code transmission, decoding reception, control output, industrial-grade chip, large load capacity, strong anti-interference ability.
When people enter the sensing range, they can turn on automatically. When they leave, they can automatically turn off after a delay. This eliminates the manual waste of conventional lamps and unmanned waste, prolongs the service life of the lamps, and integrates energy saving, convenience and environmental protection.
PIR light switch can automatically identify day and night, and the external environment illumination at the beginning of work can be freely selected to achieve automatic work at night and close during the day.
The detection distance maximum 3M;
The lighting time is adjustable and can be adjusted by the user according to local conditions from 10S -120S.
Key Feature:
1. PIR light switch
2.can automatically identify day and night
3.energy saving, convenience and environmental protection.
4.Select delay time by pushbutton：10-120S
5.The detection distance：maximum 3M
Performance Parameters：
Input /Output Voltage:12V/24V
Output Current:3.0A
Rated power:36W(12V)/72W(24V)
Standby power:≤0.15W
Dimension：83*35.5*18.5mm
Application:
(1) LUX is used to detect ambient light.
A: When the ambient light> 160lux is detected, the sensor turns off the automatic detection mode;
B: When the ambient light <80lux is detected, the sensor starts the automatic detection mode.
 |  |
（2）TIME is to adjust the sensor delay time (10-120S). The delay time refers to the time when the sensor leaves the sensing area after the sensor senses a person, and the sensor turns off after a delay.
Model | Dimensions | Cut - Out | Board Thickness |
05101.00 |
| Ø 19mm | ＜17mm |

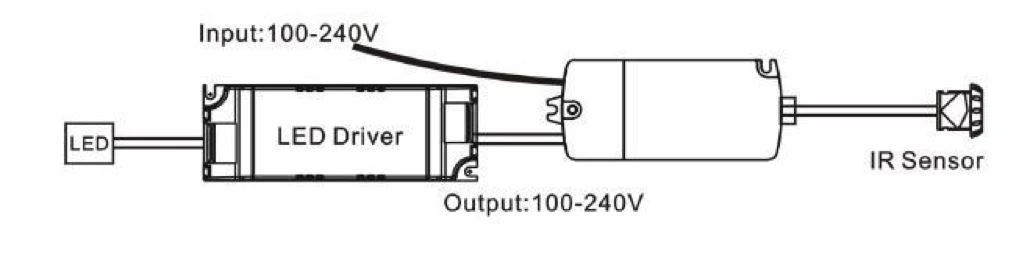

Size & Installation:
Size: 83*35.5*18.5mm,PIR light switch applicable to all kinds of buildings stairs, corridors, toilets, office buildings, toilets, community and other public areas.Can prolongs the service life of the lamps, and integrates energy saving, convenience and environmental protection.
