Introduction：
Led touch sensitive switch is designed for all kinds of intelligent lamp that defend bath mirror, bathroom mirror of anti fog lamps, the LED mirror (lens ark) design of customized products such as a smart mirror a touch induction switch, has the beautiful appearance, reliable performance, easy installation, the size thin, tactile sensitivity etc., suitable for all kinds of glass lamp or other material such as glass, ceramic or artificial stone surface touch the induction control. The mirror to touch the switch on the induction of panel design with back light (blue/white/red), when the power supply and switch connection and after electrify induction switch panel on the back light will be lighted, induction point on the finger touch panel switch control of output can be realized, back light for long bright (or color transform) and can be closed by a long way induction spot panel back light and output. The size of the touch points on the mirror or glass should be round or square with a diameter of 13-17mm and should be closed.
Key Feature:
1. Ultra-thin size, integrated LED drive, touch module and relay
2. Sensitive to touch and can be touched with wet hands
3.Anti - interference, high stability, high security
4.Passed CE certificate, IP44 and 10,000 switch life tests
5.Passed the latest ERP certification,PF> 0.95
6.Memory Function
Performance Parameters：
Model | Input Voltage | A Output Voltage | B Output Voltage | Rated Power | Power Factor | Dimension(mm) |
7007.04 | 220-240VAC | 220-240VAC | 12/24VDC | 30W | >0.95 | 155*85*20mm |
220-240VAC | 220-240VAC | 12/24VDC | 60W | >0.95 |
Installation & Application:
Super thin with thickness only 20mm,this led touch sensitive switch with IP44 waterproof and also bulit-in led constant voltage driver and relay, specially designed for bathroom led mirrors. Use with the new mounting bracket very easy to installation and remove form the mirrors.
Model No. | Main Function | Function Description |
7007.04 Three Switches
| ON/OFF DEFOGGING DIMMING COLOR CHANGE |
Short touch (<0.5s): light on/off Long touch (>0.5s): dimming from 5%-100% Short touch (<0.5s): CW-NW-WW, step adjustable Long touch (>0.5s): stepless adjustable CCT from CW-WW
With memory function Brightness and color temperature dimmable Workable with Anti-fog film
***Sensor backlight color can be customized as per your requirements. |

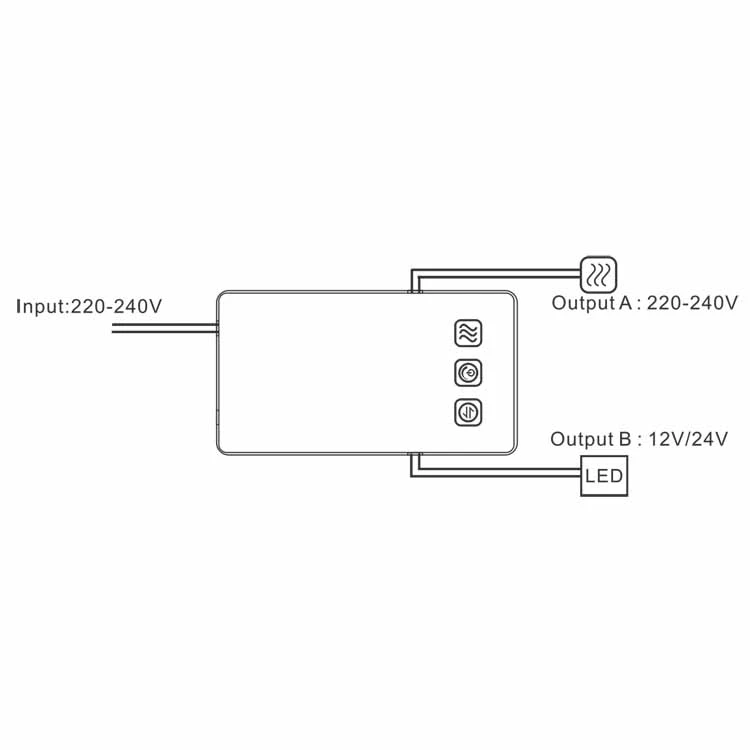

Connection:
Note: before installation, please cut off the main power.
FAQ:
Q1. Can I have a sample order ?
A: Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:If your order quantity <1000PCS. We have inventory, so we can deliver the goods quickly , mass production time needs 3-5weeks for order quantity more than.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on motion sensor product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2years warranty to our products.
