Introduction：
Led mirror touch switch is a kind of Smart Mirror touch switch specially designed for all kinds of bathroom intelligent lamp mirror, bathroom anti fog lamp mirror, LED lamp mirror (mirror cabinet) and other products. The product has the characteristics of beautiful appearance, reliable performance, convenient installation, thin size, sensitive touch, etc., which is suitable for surface touch of various mirror lamps or other glass, plastic, ceramic or artificial stone materials Inductive control.
A backlight is designed on the sensing panel of the mirror touch switch. When the power supply and the switch are connected and powered on, the backlight on the sensing panel of the switch will be on. The sensing point on the finger touch panel can realize the on-off control of the output. The backlight source is long on (or color conversion) and can close the backlight and output of the panel by long pressing the sensing point.
Key Feature:
1.Smart Led Mirror touch switch
2.workable with Anti-fog film/relay
3. reliable performance, convenient installation, thin size, sensitive touch
4.Support for mirror thickness: 5mm
5. IP44 design
6..Memory Function
Touch switch function:
1. Memory Function: Gradually turn on the power to the brightness at the last power-off
2. Short press to switch on/off light;
3. long press to adjust the brightness 2%-100%;
4. There is no buffer for brightness changes.
5. Suitable for single temperature dimming control
Performance Parameters111
Model | Input Voltage | Output Voltage | Rated Power | Rated Current | Standby power | Dimension(mm) |
5103.02 | 12V/24 | 12v/24v | 36W (12V) | 3.0A | ≤0.15W | 57*64*11mm |
| 72W(24V) |
Application：

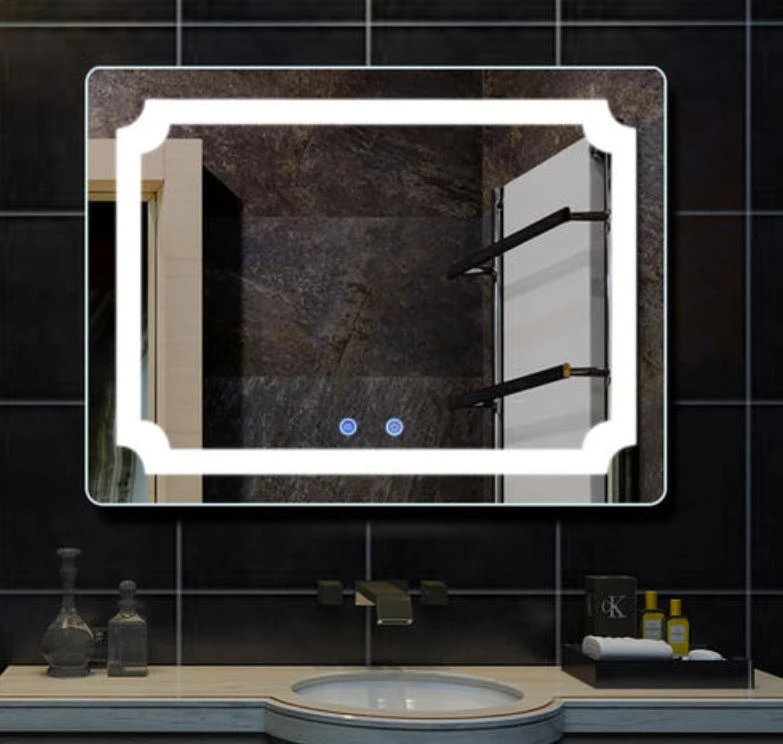

Scope of application: hotel bathroom lamp, make-up mirror, mirror front lamp, make-up box, etc.

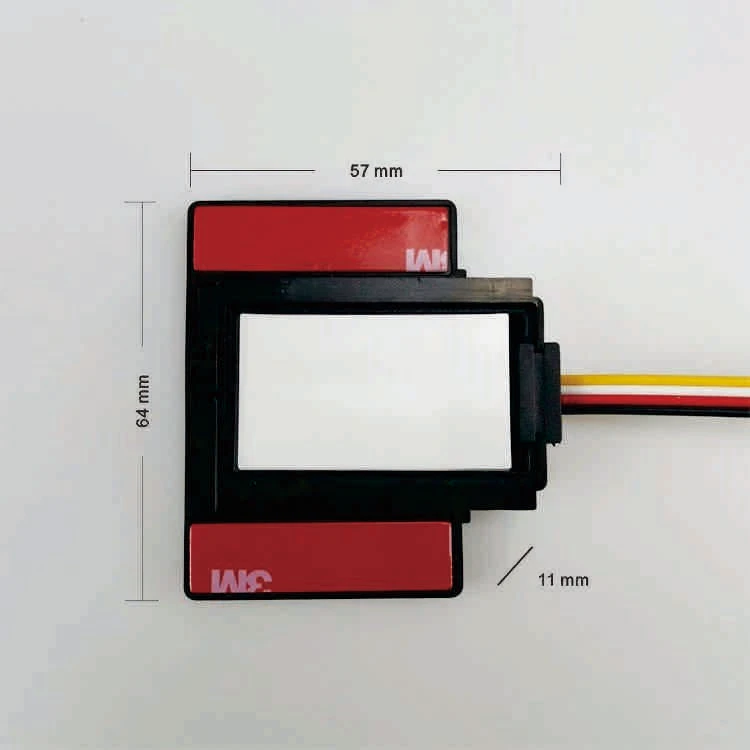

Size &Installation:
Led mirror touch switch can be invisibly installed behind mirrors，no need to make hole .
size:57*64*11mm
