Description

Introduction：

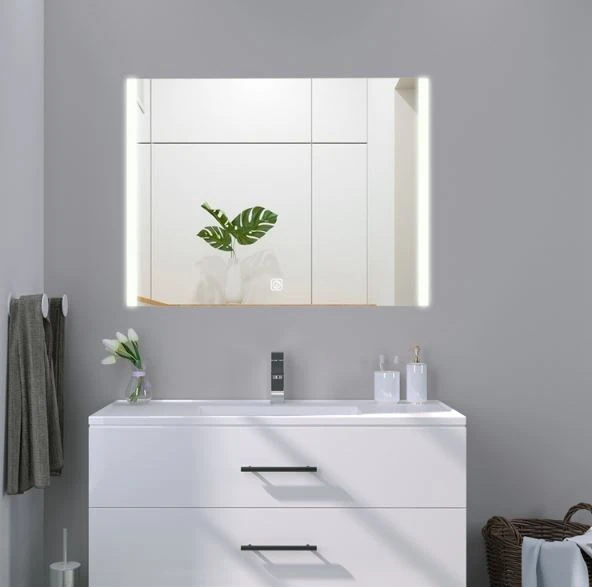

Low voltage led dimmer switch is a SELV touch sensor switch, usually installed behind mirror. After installing the switch, switch accessories can not be seen in front of the mirror, but through the backlight exposed touch button, simple and stylish.

Even with a single button, it has very powerful functions to play with your mirror light.
Short touch: CW-NW-WW, 3 color temperature step adjustable.
Long touch: Brightness dimming form 5%-100%, within 3 seconds.

When the power supply and the switch are connected, the backlight on the switch board lights up after the power is turned on, and the backlight is always on. If you don't like the light to stay on, long press to turn the sensor backlight off when mirror light is off.

Key Feature：

1. Low voltage led dimmer switch
2. Brightness and color temperature dimmable
3. Touch sensitive
4. Long working life cycle test>10,000 times approved by lab
5. LED color customization
6. Memory Function
7. One sensor switch but multi-functions
Performance Parameters：

Model	Input Voltage	Output Voltage	Rated Power	Rated Current	Standby power	Dimension(mm)
5103.00D	12V/24V	12V/24V	36W (12V)	3.0A	≤0.15W	57.16411mm
			72W (24V)

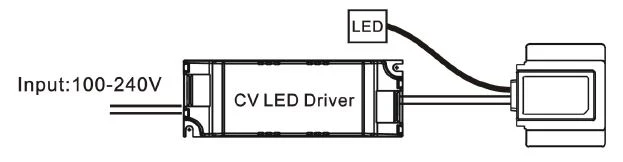

Size & Installation &Connection:

Size: 57.1*64*11mm

Low voltage led dimmer switch can be invisibly installed behind mirrors, no need to make hole.

Application:
Wet Hands can be touched and senstive.
Short touch to turn on/off mirror light.
Short touch: CW-NW-WW, 3 color temperature step adjustable.
Long touch: Brightness dimmable form 5%-100%, within 3 seconds

More function:

Model No.	Main Function	Function Description
5103.00 Single Switch	ON/OFF	Short touch to turn on/off mirror light. When mirror light off, sensor shows blue backlight; when mirror light on, sensor shows white backlight. When mirror light off, long press to turn off sensor backlight completely. *Sensor backlight color can be customized as per your requirements.
5103.00T Single Switch with Single Color Temperature	ON/OFF+Dimming	Short touch to turn on/off mirror light. Long touch to dimmable mirror light brightness form 5%-100%. When mirror light off, sensor shows blue backlight; when mirror light on, sensor shows white backlight. When mirror light off, long press to turn off sensor backlight completely. *Sensor backlight color can be customized as per your requirements.
5103.00D Single Touch with Multi Color Temperature	1. ON/OFF+3 color temperature change 2. CW-NW-WW，step adjustable	Short touch：CW-NW-WW，mirror light 3 color temperature step adjustable. Long touch：mirror light brightness dimmable from 5%-100%，within 3 seconds. With memory function. Color temperature and brightness changes have soft on/off effects, within 0.6 seconds. When mirror light off, sensor shows blue backlight; when mirror light on, sensor shows white backlight. When mirror light off, long press to turn off sensor backlight completely. *Sensor backlight color can be customized as per your requirements.

FAQ：

Q1. Can I have a sample order for your smart touch sensor switch?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Usually it takes 1-2 weeks.

Q2: What about the lead time?
A: Order production time is about 15-25 days, it depends on the quantity.

Q3. Do you have any MOQ limit for your products?
A: Low MOQ, 1pc for sample checking is available.

Q4. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
